Raritan Dominion LX II
ECONOMICAL, JAVA-FREE KVM-OVER-IP AND SERIAL ACCESS FOR SMBs
- Java-free, BIOS-level, IP remote access
- One or two remote users. One local user. 8 or 16 KVM ports. Up to 8 serial ports.
- Integrated Switch / LCD drawer models
- Single power supply & LAN port
- VGA, DVI, HDMI, USB-C and DisplayPort
- Second generation platform with 1080p and 1200p video at 15 frames/second
- Universal Virtual Media?
- Absolute Mouse Synchronization?
- Manage up to 8 serial devices (DSAM)
- VGA/USB Local port
- RADIUS, LDAP and Active Directory
- Tiering support up to 256 serve

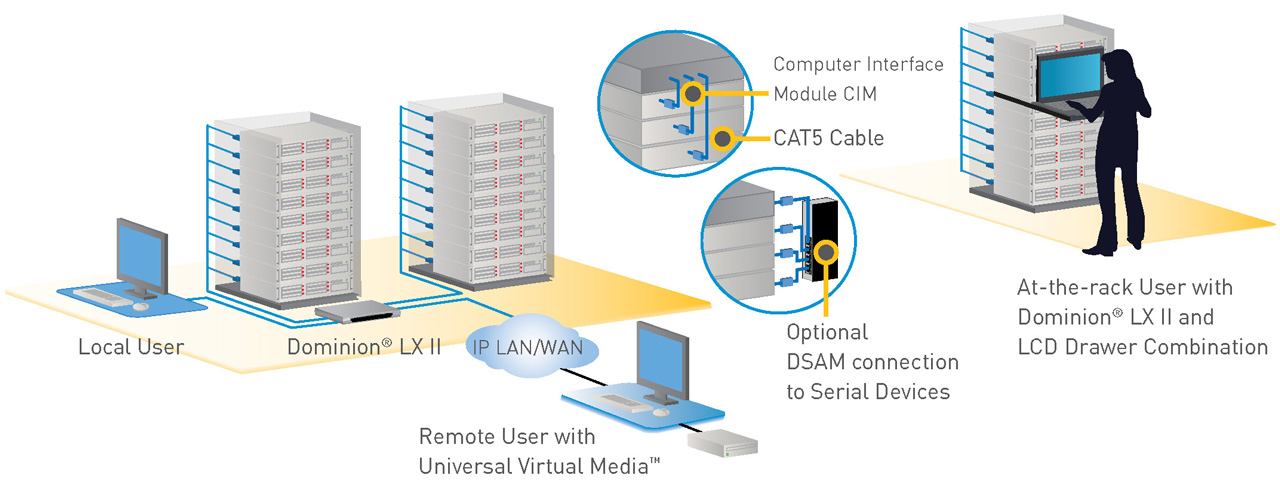

Designed for small to midsize businesses (SMBs), Raritan?s economical Dominion® LX II enables IT, data center, lab, and network administrators to remotely manage computer and serial devices to maximize uptime, avoid travel and quickly resolve issues.
These second-generation KVM-over-IP switches (and integrated switch / LCD drawer models) give one/two remote users and one local user, Java-free, BIOS-level access and control of 8 or 16 servers. Optional management of 2 to 8 serial devices is also available. Standard productivity features such as virtual media, absolute mouse synchronization, directory server authentication, and PC Share are all included.
CUSTOMERS
- IT Administrators
- Data Center and Lab Managers
- Network Administrators
APPLICATIONS
- Small and Medium Business (SMB)
- Labs, small racks and server rooms
- Remote offices and facilities, retail
- Applications with KVM and Serial
- Replace old, Java-based KVM switches
Main Features
- Java-free, BIOS-Level IP Access
Productive, Java-free, BIOS-level, IP access and control of PC?s, servers and serial devices over LAN, WAN, or Internet to troubleshoot, reconfigure, and reboot servers remotely.
Productive HD Remote Access
Access applications on remote servers up to 1920x1080 and 1920x1200 HD video resolution, with a standard 15 frames-per-second KVM-over-IP performance.
Multi-Platform, Multi-Vendor Access
Administer a wide range of servers, PCs and laptops with VGA, DVI, HDMI, USB-C, DisplayPort, USB, and PS/2 interfaces. Manage 2 to 8 networking or serial devices via Dominion Serial Access Modules (DSAM).
Combination Switch / LCD Drawer
Three combination LX II KVM switch and T1700-LED LCD drawer models provide at-the-rack and remote, IP-based management in a 1U integrated unit.
Additional Features
- Optional Serial Access
Manage 2, 4, 6, or 8 serial devices with Dominion Serial Access Modules (DSAM). Gain full-featured, Java-free serial access with auto DTE/DCE ? no rollover cables!
Virtual Media
Use virtual media for remote tasks: software installation, remote booting and diagnostics for productive anytime/anywhere remote management.
Combination Switch / LCD Drawer
Three combination LX II KVM switch and T1700-LED LCD drawer models provide at-the-rack and remote, IP-based management in a 1U integrated unit.
Strong Security
Utilizes strong TLS, password settings, password retry lockout, and the Advanced Encryption Standard (AES). It also integrates with Active Directory®, LDAP or RADIUS.
Apple iPhone/iPad
Get convenient BIOS-level access and control of PC?s and servers via Apple iPhones and iPads using the Java-free, HTML5-based HTML KVM Client.
Absolute Mouse Synch
Absolute Mouse Synchronization provides perfect synchronization without changing server mouse settings - the ultimate in plug and play!
At-the-Rack Access
The LX II local port provides fast, at-the-rack access via VGA & USB. The productive, browser-based user interface is common with the remote UI, with all administrative features.
ECONOMICAL REMOTE MANAGEMENT FOR SMBs
POPULAR DOMINION FEATURES
- VGA, DVI, HDMI, USB-C and DisplayPort
- Virtual Media to remotely install software, run diagnostics and boot
- Absolute Mouse Synchronization to automate server mouse configuration
- PC Share access by up to 8 users
- RADIUS, LDAP and Active Directory
- Secure TLS and AES encryption
- Multi-vendor, multi-platform, multi-OS
OPTIONAL SERIAL ACCESS WITH DSAM
- Manage 2, 4, 6 or 8 serial devices such as LAN switches, routers, Linux servers
- Two and four port serial modules
- Full featured serial over IP access
- Auto DCE/DTE ? no rollover cables!
- Zero-U, Connects to LX II USB port
- Powered from the LX II switch.
- Does not use any LX II KVM ports
JAVA-FREE KVM/SERIAL ACCESS
- Productive, Java-free HTML5 User Interface
- User configurable for LAN, WAN and Internet
- Three KVM Client Software alternatives
- Java-free, HTML5-based HKC
- Microsoft Windows .NET-based AKC
- Java-based VKCS
- External telephone and cellular modem access
- Apple iPhone/iPad Access and Control
COMPATIBILITY INFORMATION
- No Support for Raritan CommandCenter, Dominion User Station or MCUTP cables
- Single LAN port, single power supply
- Does not support many advanced features of the Dominion K X III and K X IV switches:
- SmartCard, FIPS 140-2, audio, blade servers, remote power control, IP access control, SDK/API, autoscan, etc.
- Check documentation for more info
SPECIFICATIONS
Product Information | |
Dimensions | 11.45? x 10.63? x 1.73?; 291mm x 270mm x 44mm; |
Weight | 8.82lbs; 4.0kg |
Single power | 100-240V AC, 50-60Hz, 0.5A, 30 watts, 25.794 kcal/h |
Environmentals | |
Operating Temperature | 0?40°C (32°?104° F) |
Humidity | 2%?85% RH |
Hardware Supported | |
Form Factor | 1U, rack mountable (brackets included) |
Local Access Ports | VGA local video output port. Three USB-A ports for keyboard and mouse |
Sample Video Resolutions | 1024x768, 1280x1024, 1440x900, 1680x1050, 1600x1200, 1920x1080, 1920x1200 |
Remote Connection | |
Ports | 8 (DLX2-108) or 16 (DLX2-116, DLX2-216) |
Users | Local user; 1 or 2 remote users (model dependent) |
Network | Single 10/100/1000 gigabit Ethernet access, dual stack: IPv4 and IPv6 |
Protcols | TCP/IP; HTTP: HTTPs; UDP; RADIUS; SNMP; DHCP; PAP; CHAP |
Ordering Information
LX II Model | Description |
DLX2-108 | Affordable 8-port KVM-over-IP switch, 1 remote and 1 local user, virtual media, single power and single LAN |
DLX2-116 | Affordable 16-port KVM-over-IP switch, 1 remote and 1 local user, virtual media, single power and single LAN |
DLX2-216 | Affordable 16-port KVM-over-IP switch, 2 remote and 1 local user, virtual media, single power and single LAN |
