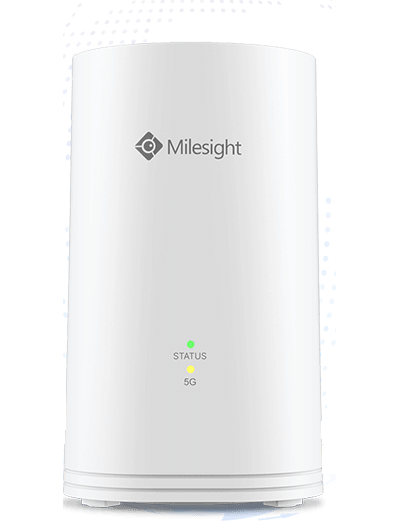

Milesight UF51 5G CPE
solutions for 5G wireless networking application
- 5G / WI-Fi /GPS / PoE
- 1 SIM
- 2 x 10/100/1000 Mbps
- ( 1 x WAN + 1 x LAN or 2 x LAN )
- 1 x RS232 or 1 × RS485 (Switchable)
- 1 x DI + 1 x DO
- IP 67 rated
UF51 5G CPE is dedicated to cost effective solutions for 5G wireless networking application. Adopting high-performance industrial platform of quad-core CPU and 5G cellular module, UF51 is capable of providing ultra-fast network and ultra-small package to ensure the extremely safe and reliable connection to the wireless network. With various kinds of installation methods, IP67 waterproof enclosure and novel design, UF51 is applicable to indoor and outdoor applications.
Meanwhile, UF51 also supports 2-port Gigabit Ethernet switch, serial ports (RS232/RS485) and DI/DO (Digital input/Digital output), which enable you to scale up M2M application combining data and video in limited time and budget.
UF51 is particularly suitable for smart offices, video surveillance, digital media implementations, industrial automation, traffic applications, robots and so on.
Fast & Reliable Network
- Qualcomm quad-core CPU with big memory, providing high performance for data transmission
- Global 5G NSA&SA/4G LTE network for backup among multiple carrier networks
- Gigabit Ethernet ports for lightning transmission of data
- 2.4G & 5G dual band Wi-Fi support
- Embedded 8 5G antennas and 4 Wi-Fi antennas for best signal reception
- Equipped with I/O, serial port, GPS for industrial transmission applications
Security & Reliability
- Embedded Python SDK for functional programming and seamless deployment to edge nodes
- Automated failover/failback among Ethernet, Cellular and Wi-Fi
- Secure transmission with VPN tunnels such as IPsec/OpenVPN/GRE/L2TP/PPTP /DMVPN/MilesightVPN
- Reliable firewall for secure networking: SPI, ACL, port mapping, IP/MAC binding,etc.
- Embeds hardware watchdog to automatically recover from various failure, ensure highest level of availability
Robust Hardware Design
- Wide operating temperature range from -40°C to 70°C and industrial design for harsh environment
- IP67 waterproof and UV-protective enclosure for outdoor applications
- PoE or DC power supply optional
- Equipped with a vent plug to prevent condensation in enclosure
- Pole mounting, wall mounting, desktop, bottom magnetic or lock mounting for various applications
- 3-year warranty included
Easy Maintenance
- The user-friendly web interface design and more than one option of upgrade help administrator to manage the device as easy as pie
- WEB GUI and CLI enable the admin to achieve simple management and quick configuration among a large quantity of devices
- DeviceHub provides easy setup, mass configuration, and centralized management of remote devices
- Efficiently manage the remote device through SNMP protoco
Specifications
- Hardware System
- CPU
Qualcomm Quad-core ARM Cortex-A7,716.8 MHz
Memory
512 MB DDR3 RAM and 8 GB Flash
Cellular Interface
- Network
5G/4G LTE
Antenna
8 × Internal Antennas
SIM Slot
1(Mini SIM-2FF)
Ethernet Interface
- Numbers
2 × 10/100/1000 Mbps
Property
1 × WAN + 1 × LAN or 2 × LAN
Mode
Full or half duplex (Auto-Sensing)
PoE
1 × 802.3af PoE PD on WAN/LAN Port
Wi-Fi Interface
- Antenna
4 × Internal Antennas
Standards
IEEE 802.11b/g/n,2.4 GHz
IEEE 802.11a/n/ac,5 GHz
Tx Power
2.4 GHz: 26dBm (max)
5 GHz: 26.4dBm (max)
Rx Sensitivity
2.4G:
802.11b: ≤ -92dBm@11Mbps
802.11g: ≤ -78dBm@54Mbps
802.11ac VHT20: ≤ -91dBm@MCS0
802.11ac VHT20: ≤ -66dBm@MCS8
802.11ac VHT40: ≤ -88.5dBm@MCS0
802.11ac VHT40: ≤ -64dBm@MCS8
5G:
802.11a: ≤ -91dBm@6Mbps
802.11a: ≤ -76dBm@54Mbps
802.11ac VHT20: ≤ -90dBm@MCS0
802.11ac VHT20: ≤ -68dBm@MCS8
802.11ac VHT40: ≤ -87dBm@MCS0
802.11ac VHT40: ≤ -65dBm@MCS9
802.11ac VHT80: ≤ -84dBm@MCS0
802.11ac VHT80: ≤ -60dBm@MCS9
Modes
AP and Client mode
Security
WPA/WPA2 authentication, WEP/TKIP/AES encryption
GPS 1(Optional)
- Antenna
1 × Internal Antenna
Technology
GPS/GLONASS/Beidou/Galileo/QZSS
Serial Interface
- Numbers
1 × RS232 or 1 × RS485 (Switchable)
Connector
3.5 mm Terminal Block
Baud Rate
300bps to 230400bps
DI/DO
- Numbers
1 × DI (dry contact) + 1 × DO (wet contact), galvanic isolation
Connector
3.5 mm Terminal Block
Maximum
V/A 0.3A@30VDC (DO)
Others
- Reset Button
1 × RESET
LED Indicators
1 × STATUS,1 × 5G (Cellular Networks)
Built-in
Watchdog, RTC, Timer
Software
- Network Protocols
PPP, PPPoE, SNMP v1/v2c/v3, TCP, UDP, DHCP, RIPv1/v2, OSPF, DDNS, VRRP, HTTP, HTTPS, DNS, ARP, QOS, SNTP, Telnet, VLAN, SSH, etc.
VPN
DMVPN, IPsec, OpenVPN, PPTP, L2TP, GRE
Security
Access Control, DMZ, Port Mapping, MAC Binding, SPI Firewalls, DoS&DDoS Protection, Filtering(IP&Domain), IP Passthrough
Management
Web, CLI, SMS, On-demand dial up, SNMP v1/v2c/v3, DeviceHub
AAA
Radius, Tacacs+, LDAP, Local Authentication
Multilevel Authority
Multiple Levels of User Authority
Reliability
VRRP, WAN Failover
Serial Port
Transparent (TCP Client/Server, UDP), Modbus Master/Slave,
Modbus Gateway (Modbus RTU to Modbus TCP)
Power Supply
- Power Input²
1. 9-48 VDC, with Surge-Protection and Reverse Polarity Protection 2. 802.3 af PoE PD
Power Connector
2-pin 3.5 mm Terminal Block
Physical Characteristics
- Ingress Protection
IP67
Housing
Polycarbonate + Metal
Dimension
No Waterproof Connector: ф105 x 110 x 188 mm (ф4.13 x 4.33 x 7.40 in)
With Waterproof Connector: ф105 x 110 x 218 mm (ф4.13 x 4.33 x 8.58 in)
Installation
Desktop, Pole Mounting, Wall Mounting, Bottom Magnetic/Lock Mounting
Environmental
- Operating Temperature
-40°C to +70°C (-40℉ to +158℉) Reduced Cellular Performance Above 60°C
Storage Temperature
-40°C to +85°C (-40℉ to +185℉)
Ethernet Isolation
1.5 kV RMS
Relative Humidity
0% to 95% (non-condensing) at 25°C/77℉
