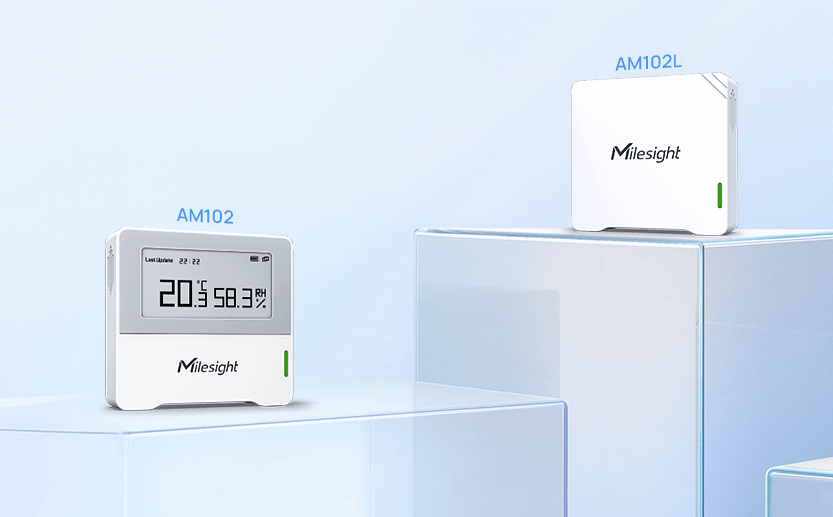

Milesight AM100 Series
Ambience Monitoring Sensors
- Robust LoRa connectivity for indoor or HVA environments
- Integrated multiple sensors like temperature, humidity, light, airquality, etc.
- Easily Configuration via NFC
- Visual display via E-Inkscreen
- LoRaWAN v1.0.2/v1.0.3/v1.1
- Milesight Cloud compliant
- Low power consumption (about 1 year battery life)
- Standard AA alkaline battery
Milesight / Ursalink AM100 Series consists of multiple smart sensors that are built specifically for indoor ambient measurements. It has a clean and modern design that makes it discrete in indoor ambience.
Clean and Modern Design
Bring “less is more” concept to indoor or HVAC environment
Multiple Sensors in One
Temperature, humidity, motion (PIR), CO2, TVOC, barometric pressure
Configure with One Touch
NFC technology enables easy configuration and on/off operation

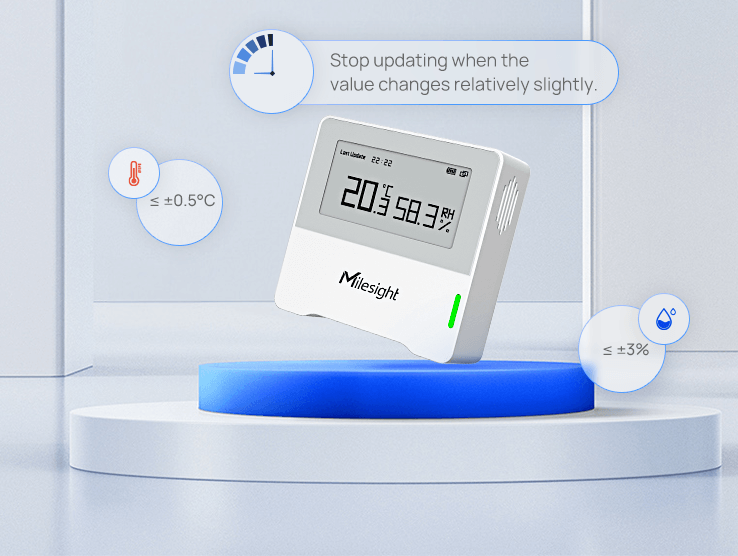

Better Readability than LCD Monitor
E-ink technology offers high display clarity and sunlight visibility
Low Power Consumption
AA alkaline batteries can last for 1 year and ensure low maintenance cost
Smart Screen Mode
Screen will stop updating data if no motion is detected continuously for 20 minutes,which will save more power and prolong the use life of batteries.
Compliant with Toolbox & Ursalink Cloud
Manage and configure your sensor easily
Cloud Web & APP:
AM100 Series Sensor works perfectly with Ursalink Cloud (Web & App), which allows you to monitor your data in the office or on the go. With a drag-and-drop experience, Ursalink Cloud provides rich features such as intuitive widgets, triggers, sharing and transfer ownership of devices, layers, etc.
SPECIFICATIONS
AM102 / AM107 | AM100 / AM104 | ||
Hardware | |||
Frequency | CN470/ RU864/ IN865/ EU868/ US915/ AU915/ KR920/ AS923 | ||
Tx Power | 20dBm | ||
Sensitivity | -147dBm @300bps | ||
Mode | OTAA/ABP | ||
Power Supply | 2 × alkaline AA batteries | ||
Battery Lifetime | 1 years (SF7) 0.9 years (SF12) |
1.5 years (SF7) 1.2 years (SF12) |
|
Sensors | |||
Temperature | Range | -20°C to + 70°C (operating temperature for screen: 0-45°C) | |
Accuracy | ±0.3°C (0°C – 70°C), ±0.6°C (-40°C – 0°C) | ||
Humidity | Range | 0% to 100% RH | |
Accuracy | ±3% RH (10% – 90%), ±5% RH (0% – 10%, 90% – 100%) | ||
PIR | Detection Area | 94 ° Horizontal, 82 ° Vertical | |
Detection Distance | 5 m | ||
Light | Range | 60000 lux (Visible + IR, IR) | |
Accuracy | ±30% | ||
CO2 | Range | 400 – 5000 ppm | N/A |
Accuracy | ±30 ppm or ±3 % of reading | ||
TVOC | Range | 0 – 60000 ppb (total VOC) | |
Accuracy | ±15 % of reading | ||
Long-term Stability | 1.3 % accuracy drift per year | ||
Barometric Pressure | Range | 300 – 1100 hPa (-40°C – 85°C) | |
Accuracy | ±1 hPa | ||
Physical Characteristics | |||
Power Supply | 1. 2 × AA Alkaline battery 2. 5 VDC type-CUS Bpower supply |
||
Operating Temperature | 0 °C to +45 °C | ||
Relative Humidity | 0 % to 100 % (non-condensing) | ||
Ingress Protection | IP 30 | ||
Dimension | 105 × 70.4 × 21.2 mm (4.1 × 2.8 × 0.8 in) |
||
Mounting | Wall |
ORDERING INFORMATION
Model | Description | Sensor |
AM104 - 470M / 915M / 868M | 2 * AA alkaline batteries E-ink display NFC enabled IP30 rated |
Temperature Humidity Motion Light |
AM107 - 470M / 915M / 868M | 2 * AA alkaline batteries E-ink display NFC enabled IP30 rated |
Barometric Pressure Temperature Humidity Motion Light CO2 TVOC |
