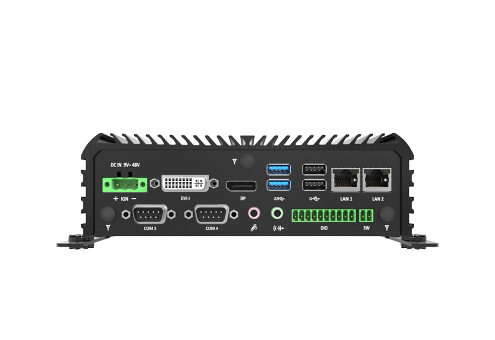

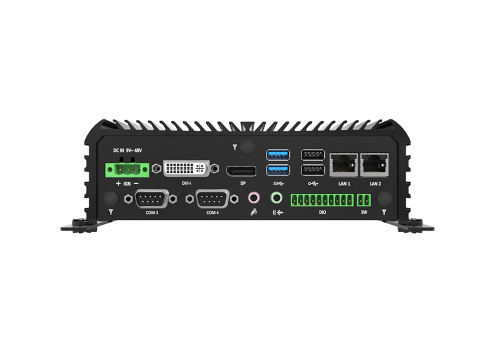

C&T Solution ACO-3000 Series
In-vehicle computer with 5th Gen Intel® Broadwell Core™ i5/i3 or Celeron® Processor, 2x LAN
- Intel® Core™ processor i5-5350U, up to 2.9GHz / i3-5010U, 2.1GHz or Celeron® 3765U, 1.9GHz
- 1x 204-pin DDR3L SODIMM. max up to 8GB
- Triple independent display supported by 1x DVI-I and 1x DisplayPort
- 2x Intel® GbE supporting Wake-on-LAN and PXE
- 2x 2.5” SATA HDD bay and 2x mSATA supporting RAID 0, 1, 5, 10
- 2x full-size mini PCIe for communication or expansion modules, 2x SIM socket
- 1x universal bracket (for mini PCIe application)
- 4x RS-232/422/485, 2x USB 3.0, 2x USB 2.0
- 4x DI + 4x DO with isolation
- 9 to 48VDC wide range power input supporting AT/ATX mode
- -40°C to 70°C extended operating temperature
- Power ignition management
Based on 5th Gen. Intel® Core™ i5-5350U (2.9GHz) / i3-5010U (2.1GHz) or Celeron® 3765U (1.9GHz) Dual Core processor, ACO-3000 series is an extreme features integration, outstanding system performance, versatile I/O connections, and rugged reliability fanless embedded systems. Compliant with E-Mark and EMC Conformity with EN50155 & EN50121-3-2 certification, as well as support up to 6x LAN or 4x PoE versions and power ignition function, ACO-3000 series is dedicated to use for in-vehicle applications. It offers modularize expansion I/O, rich connectivity interfaces, wide range (9~48V) DC power input, and high reliability even operating in temperature extremes (-40°C~+70°C).
Featuring with completely cable-less designed, high functional, one-piece housing design, and anti-vibration, ACO-3000 series are ruggedized systems that can operate in harsh environments and easy to install and maintain. A build in over voltage protection (OVP), over current protection (OCP), reverse protection, and wide range DC power input makes ACO-3000 series are safety system for all industrial applications.
System
- Processor
- 5th Gen Intel® Core™ i5-5350U Processor, Dual Core, 3MB Cache, up to 2.9 GHz
- 5th Gen Intel® Core™ i3-5010U Processor, Dual Core, 3MB Cache, 2.1 GHz
- 5th Gen Intel® Celeron® Processor 3765U, Dual Core, 2MB Cache, 1.9 GHz
System Chipset
SoC integrated
LAN Chipset
GbE1: Intel® I210-AT (Support Wake-on-LAN and PXE)
GbE2: Intel® I218-LM (Support Wake-on-LAN and PXE)
Audio Codec
Realtek ALC888S
System Memory
1x 204-Pin DDR3L 1333/1600MHz SODIMM.
Max. up to 8GB
BIOS
AMI 128Mbit SPI BIOS
Watchdog
Software Programmable Supports 1~255 sec.
System Reset
Display
- VGA
Yes (by optional split cable)
DVI
1x DVI-I
DisplayPort
1x DisplayPort
Multiple Display
Triple Display
Storage
- SSD/HDD
1x Internal 2.5" SATA HDD Bay
1x Removable 2.5" SATA HDD Bay
Support RAID 0, 1, 5, 10
mSATA
2x mSATA (shared by 2x Mini PCIe)
SIM Socket
2x External SIM socket
Expansion
- Mini PCI Express
2x Full-size Mini PCIe
I/O
- COM
4x RS-232/422/485
USB
2x USB 3.0,
2x USB 2.0
LAN
2x GbE RJ45
Audio
1x Mic-in, 1x Speaker-out
DIO
4 in / 4 out (Isolated)
Universal I/O Bracket
1x Universal I/O Bracket (For mini PCIe application)
Others
4x WiFi Antenna Holes
1x Power Switch,
1x AT/ATX Switch,
1x Remote Power On/Off
Operating System
- Windows
Windows 10, Windows 8.1, WES8.1, Windows 7, WES7
Linux
Linux kernel 3.X
Power
- Power Mode
AT, ATX
Power Supply Voltage
9~48VDC
Power Ignition Sensing
Power Ignition Management
Power Connector
3-pin Terminal Block
Power Adaptor
Optional AC/DC 12V/5A, 60W
Power Protection
OVP (Over Voltage Protection)
OCP (Over Current Protection)
Reverse Protection
Environment
- Operating Temp.
-40°C to 70°C
Storage Temp.
-40°C to 85°C
Relative Humidity
10% to 95% (non-condensing)
Vibration
With SSD: 5 Grms, 5 - 500 Hz, 0.5 hr/axis
With HDD: 1 Grms, 5 - 500 Hz, 0.5 hr/axis
Shock
With SSD: 50G, half sine, 11ms
Standards / Certification
CE, FCC Class A, E-Mark,
EMC Conformity with EN50155 & EN50121-3-2
Physical
- Construction
Extruded Aluminum with Heavy Duty Metal
Dimension (WxDxH)
185 x 197x 57.4 mm
Weight
2.16 kg
Mounting
Wall Mounting
DIN-Rail Mounting (Optional)
ORDERING INFORMATION | |
Available Models | |
ACO-3000-5350U | Vehicle Applied Fanless Embedded System with Intel® i5-5350U Processor, 2x LAN |
ACO-3000-5010U | Vehicle Applied Fanless Embedded System with Intel® i3-5010U Processor, 2x LAN |
ACO-3000-3765U | Vehicle Applied Fanless Embedded System with Intel® Celeron® 3765U Processor, 2x LAN |

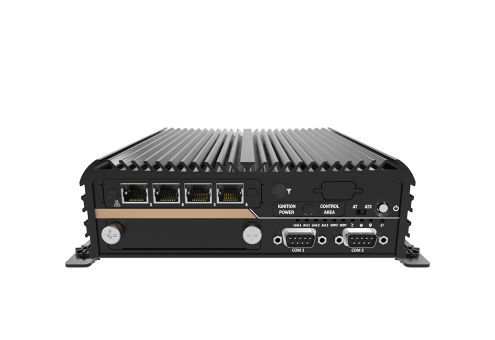

ACO-3000-4L-5350U | Vehicle Applied Fanless Embedded System with Intel® i5-5350U Processor, 6x LAN |
ACO-3000-4L-5010U | Vehicle Applied Fanless Embedded System with Intel® i3-5010U Processor, 6x LAN |
ACO-3000-4L-3765U | Vehicle Applied Fanless Embedded System with Intel® Celeron® 3765U Processor, 6x LAN |

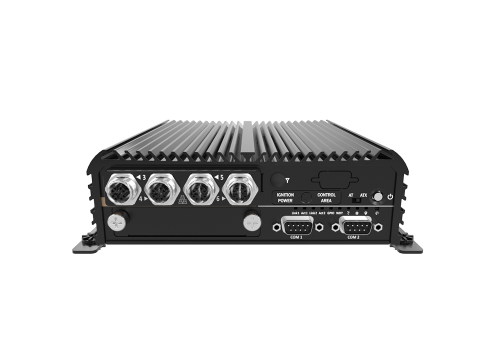

ACO-3000-4L-M12-5350U | Vehicle Applied Fanless Embedded System with Intel® i5-5350U Processor, 2x LAN, 4x M12 LAN |
ACO-3000-4L-M12-5010U | Vehicle Applied Fanless Embedded System with Intel® i3-5010U Processor, 2x LAN, 4x M12 LAN |
ACO-3000-4L-M12-3765U | Vehicle Applied Fanless Embedded System with Intel® Celeron® 3765U Processor, 2x LAN, 4x M12 LAN |
ACO-3000-4P-5350U | Vehicle Applied Fanless Embedded System with Intel® i5-5350U Processor, 2x LAN, 4x PoE |
ACO-3000-4P-5010U | Vehicle Applied Fanless Embedded System with Intel® i3-5010U Processor, 2x LAN, 4x PoE |
ACO-3000-4P-3765U | Vehicle Applied Fanless Embedded System with Intel® Celeron® 3765U Processor, 2x LAN, 4x PoE |
ACO-3000-4P-M12-5350U | Vehicle Applied Fanless Embedded System with Intel® i5-5350U Processor, 2x LAN, 4x M12 PoE |
ACO-3000-4P-M12-5010U | Vehicle Applied Fanless Embedded System with Intel® i3-5010U Processor, 2x LAN, 4x M12 PoE |
ACO-3000-4P-M12-3765U | Vehicle Applied Fanless Embedded System with Intel® Celeron® 3765U Processor, 2x LAN, 4x M12 PoE |
Packing List
- 1x ACO-3000 Series Embedded System
- 1x Utility DVD Driver
- 1x Wall Mount Kit
- 1x Accessory Kit
- 1x DVI to VGA Adapter
