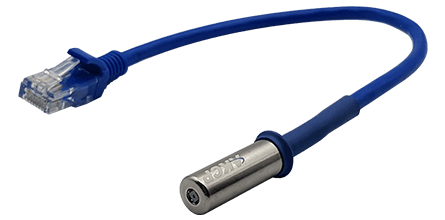

AKCP Single Port Temperature and Humidity Sensor (THSxx)
Dual sensor, 2 sensors on one port
- Monitors temperature and humidity on a single intelligent sensor port
- Own SNMP OID for data collection via a network
- Temperature measurement from -40șC ? +75șC
- Relative Humidity measurement from 0% ? 100%
- Powered by base unit, no additional power needed
- Product Code: THS01 or THS00 for extendable version
- 2 variations available
- Powered by the base unit
Combining temperature and humidity into the one sensor frees up an additional intelligent sensor port on your base unit.
In situations where both temperature and humidity can be critical you can keep up to speed on the current conditions using this sensor. Combining temperature and humidity into the one sensor frees up an additional intelligent sensor port on your base unit.
Setup is simple with the sensorProbe and securityProbe autosense function. Once plugged into the intelligent sensor port the base unit automatically detects the sensors presence and configures it for you
All you need to do is set your thresholds for low and high warning and critical parameters. The built in graphing function of the base unit gives you a pattern of temperature or humidity trends over time.
Variable length. Ships with free 5ft CAT5 cable, user can extend up to 1,000ft.
Our Single Port Temperature/Humidity Sensor is calibrated using dedicated equipment which is calibrated according to ISO/IEC 17025 and calibrated by comparison against natural standards, natural physical constants, consensus standards, or by ratio type measurements using self-calibrating techniques
Standards incorporated to establish this comparison are NIST and NPL traceable.
Our Single Port Temperature/Humidity Sensor comply with RoHS and WEEE requirements. There is no substance to be declared.
Specifications
Temperature
Measurement Range Celsius : | -40°C to +75°C |
Measurement Resolution Celsius : | 1°C |
Measurement Accuracy Celsius : | Maximum ±2.3 at -40șC, minimum ±0.4 at +25șC and ±1.7 at +75șC |
Measurement Range Fahrenheit : | -40°F to +167°F |
Measurement Resolution Fahrenheit : | 1°F increments |
Measurement Accuracy Fahrenheit : | Maximum ±4.1 at -40șF, minimum ±0.9 at +25șC and ±4 at +167șF |
Humidity
Measurement range : | 0 to 100% Relative humidity |
Resolution : | 1% |
Accuracy at : | 25°C ±3% |
Communications cable : | UTP Cat 5 cable |
Power source : | Powered by the sensorProbe. No additional power needed |
Power Consumption : | Typical 7.25 mWatt, 1.45mA |
Sensor element wettable without damage | |
sensorProbe auto detects the presence of the dual sensor | |
Up to 2 dual sensors per sensorProbe2, 8 per sensorProbe8 and securityProbe | |
Important Note: | The fixed one foot type or TMP01 and THS01 are not designed to be extended. If you need to extend these sensors then you need to use the TMP00 or THS00 (remote type).We also do not recommend you trying to connect any of our AKCP sensors including the temperature and dual temp humidity sensors though patch panels or using the RJ-45 couplers to extend them. Please see the temperature sensors product manual or FAQ in our knowledge base for more details regarding this. |
Ordering Information
Product Model | Order Number | Description |
---|---|---|
Single Port Dual Temperature and Humidity Sensor | ||
THS01 | 940051 | 1ft fixed length Dual Temp & Hum Sensor* |
THS00 | 949005 | 5ft extendable Dual Temp & Hum Sensor** |
Calibration Check Dual Temperature and Humidity Sensor | ||
THS01-NIST2 | 944085 | 1ft fixed length Dual Temp & Hum Sensor |
THS00-NIST2 | 944086 | 5ft extendable Dual Temp & Hum Sensor* |
Calibration Check with Failover Dual Temperature and Humidity Sensor | ||
THS01-NIST3 | 944087 | 1ft fixed length Temperature and Hum Sensor Sensor |
